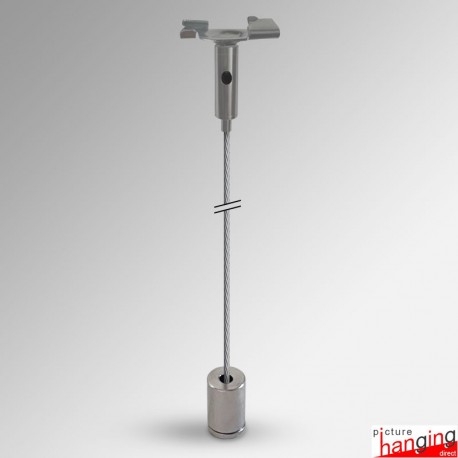

Suspended Ceiling-to-Floor Twist-On Fixed Wire Set - Cable Display for Grid False Ceilings

The Suspended Ceiling-to-Floor Twist-On Fixed Wire Set is a cable display system designed for use with grid false ceilings and ceiling-grid systems. This hanging kit is perfect for creating ceiling-to-floor cable displays in rooms and offices with suspended ceiling tiles. The cables clip directly onto the ceiling grid tracks, eliminating the need for drilling the ceiling tiles and passing cables through to screw into the concrete ceiling!

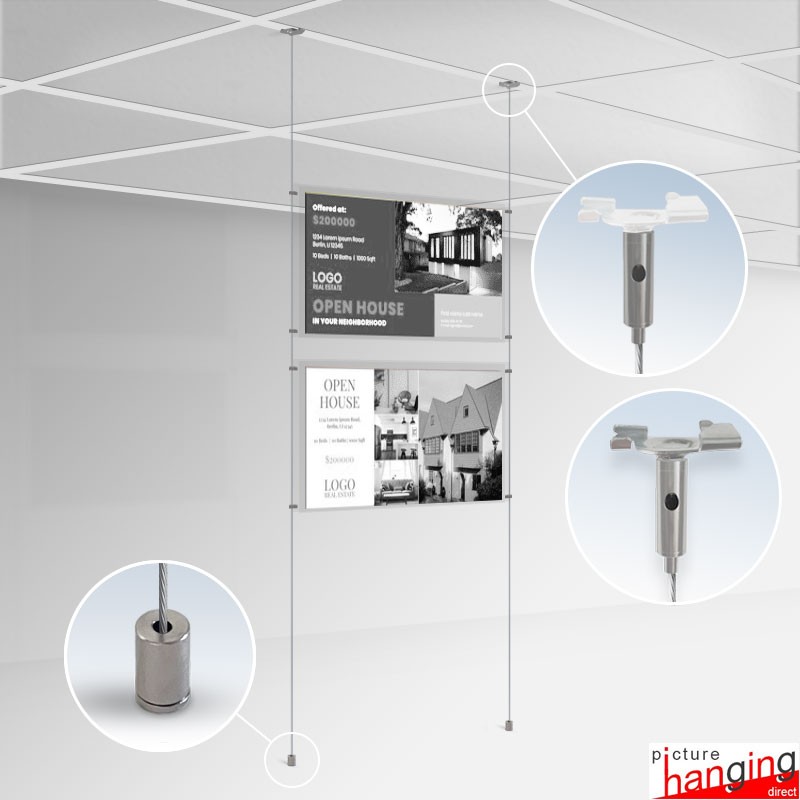

You can use this system to create wall and window displays in real estate offices, retail showrooms, waiting rooms, and reception areas. Enhance your displays by adding poster panels or brochure holders of various sizes to the suspended wires, allowing you to showcase advertisements or distribute catalogues, magazines, and leaflets.

Installation of the ceiling fitting requires no nails or tools, and removing the entire hanging system will not damage your suspended ceiling grid. The floor fitting only requires a single screw, and attaching the ceiling hanging cable can be done without any tools. This fixed cable system is especially suitable for draughty corridors and halls.

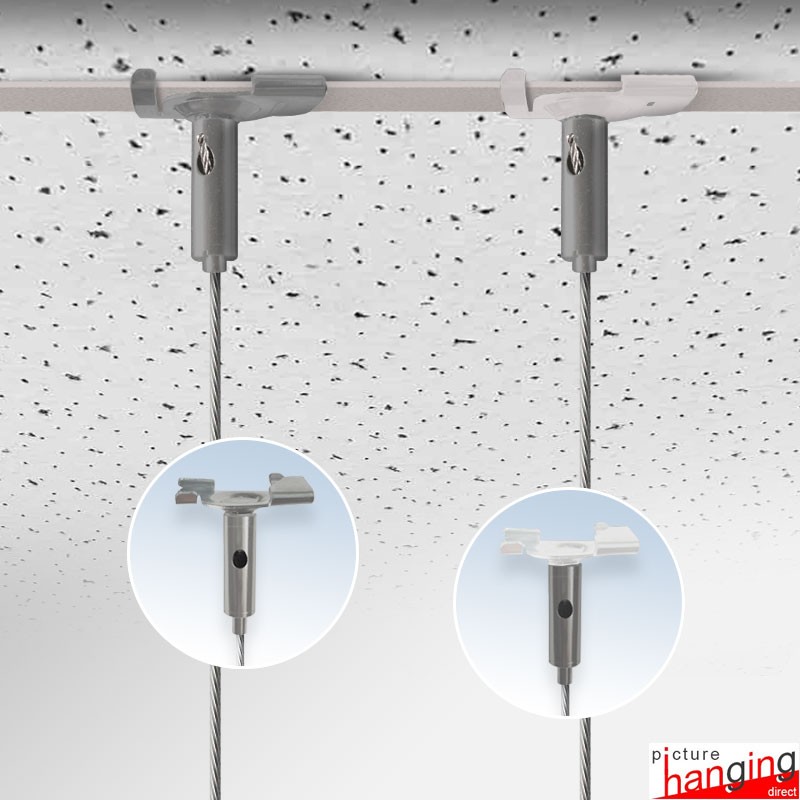

You can choose between a silver or white-coated ceiling fitting, featuring a sturdy anodised 1.5mm steel cable with a length of 4 meters (which can be cut shorter during installation). The floor fitting has a premium chrome finish. The suspended ceiling-to-floor twist-on fixed wire set has a weight capacity of up to 20 kg.

Complete ready-to-use kit includes:

• (1) Twist-on clip (silver or white)
• (1) 4m steel cable (cut exact lengths during installation)
• (1) Floor fixing (chrome)
• Note: You need at least (2) kits/cables to create a display!

Installing the ceiling-to-floor cable:

1. Attach the twist-on hanger clip and cable to the ceiling grid by twisting the fitting, then let the cable hang freely (The cable length is not an issue at this point)

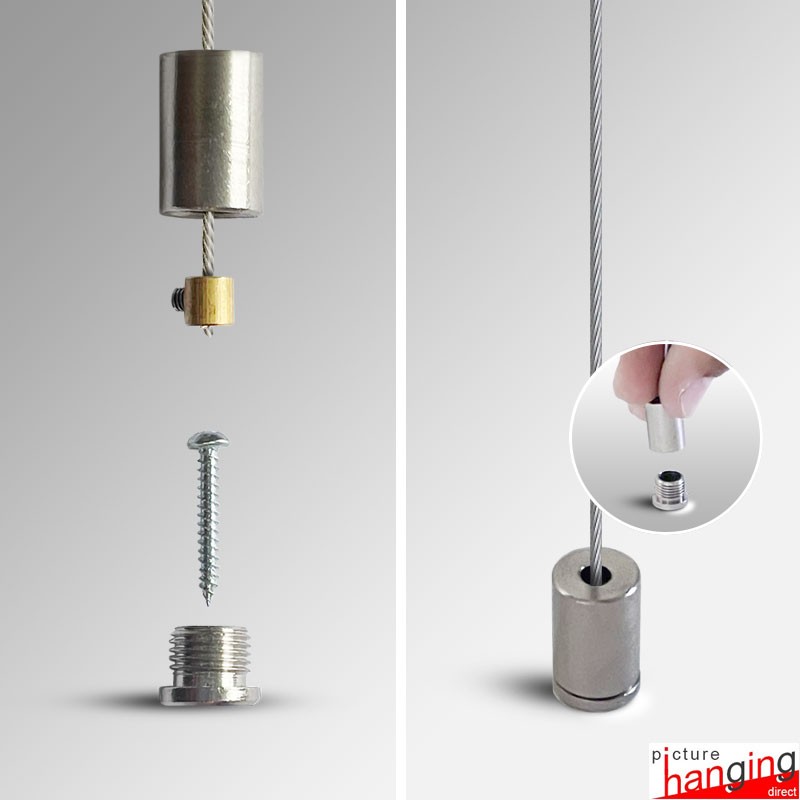

2. Unscrew the floor fitting, which will separate into two sections, plus a spring.
3. Secure the small piece of the floor fitting to the floor using a single screw.
4. Thread the cable through the larger piece & the spring of the floor fitting (so the spring sits inside)
5. Add the brass cable stopper to the cable, adjusting its position according to the desired cable length for the display.
6. Hold the cable down towards the floor to judge its length is sufficient, and cut off any excess cable using wire cutters (leave an extra cm on the end in case of adjustments)
7. Reattach the large section to the small piece with the cable and tighten the screws.
8. The internal spring inside the larger section will give tension to the cable! (If the cable is still loose, remove and re-adjust the brass cable-stopper!)
