Double-Sided Salon Mirror Hanging System - Mirror Glass & Rod Fittings (Complete)

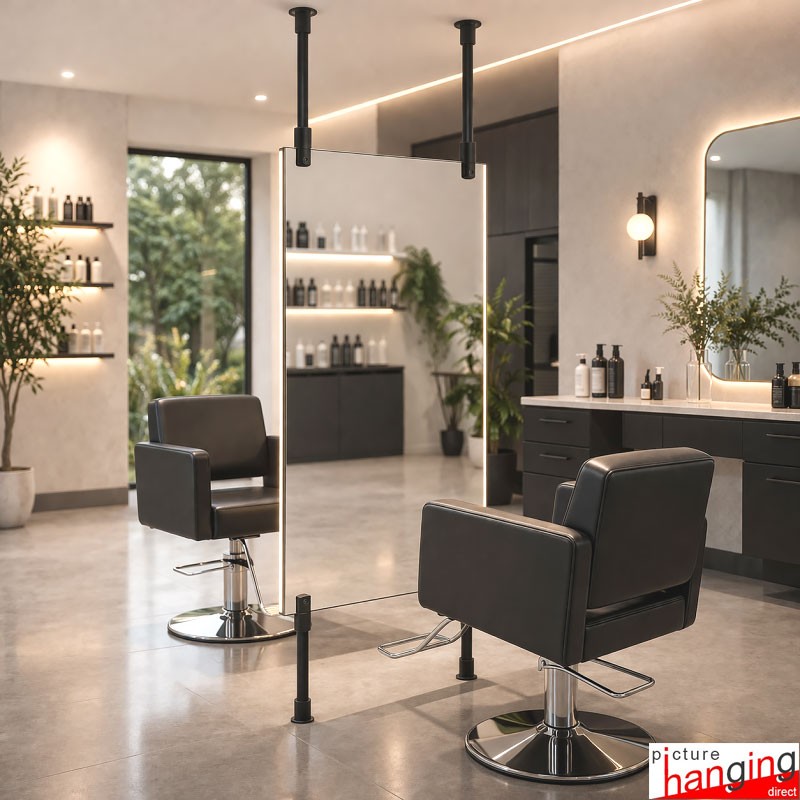

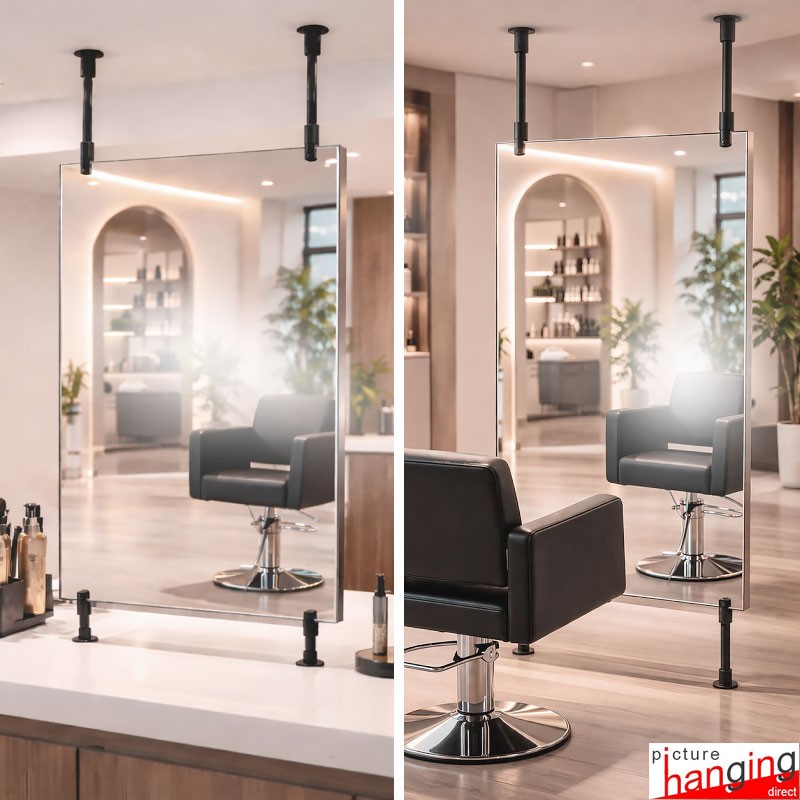

The Double-Sided Salon Mirror Glass Hanging System creates modern and sleek workstations for professional salon countertops & shop floors. It is perfect for the contemporary interiors of upscale salons and beauty spas. Each system comes with high-quality mirror-mounting fittings and a double-sided frameless mirror panel.

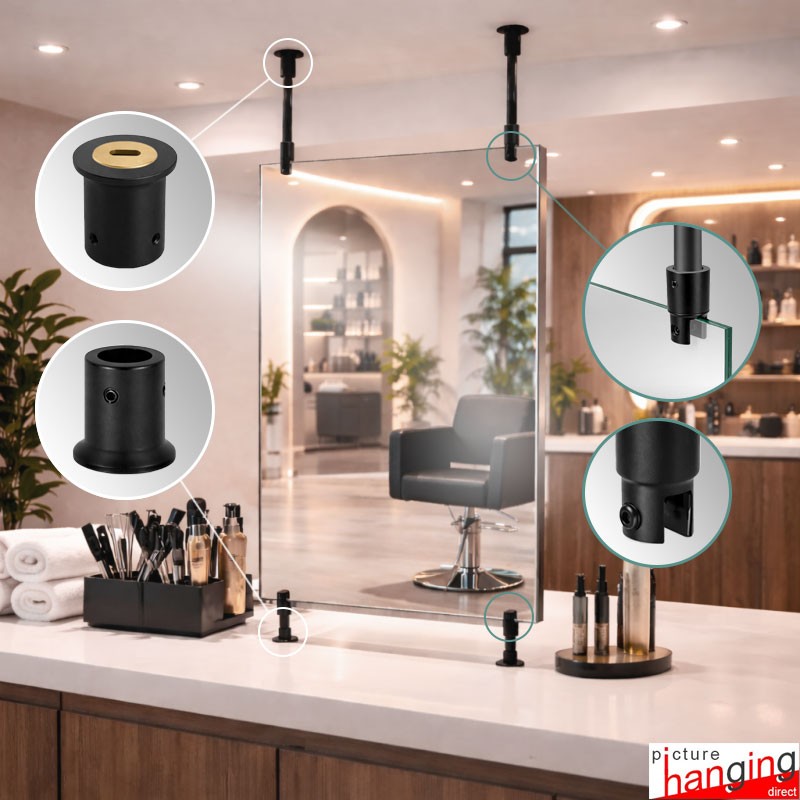

The installation securely suspends the double-sided frameless mirror glass, ensuring both stability and a clean, minimalist appearance. This mirror hanging solution is ideal for salons, barbershops, beauty studios, and retail spaces that require a stylish and functional workspace. It enhances your environment while maximising visibility and aesthetic appeal.

* If you have an existing mirror you'd like to use, the rod fittings are suitable for up to 8mm thick mirror glass. Custom-size mirrors are available upon request.

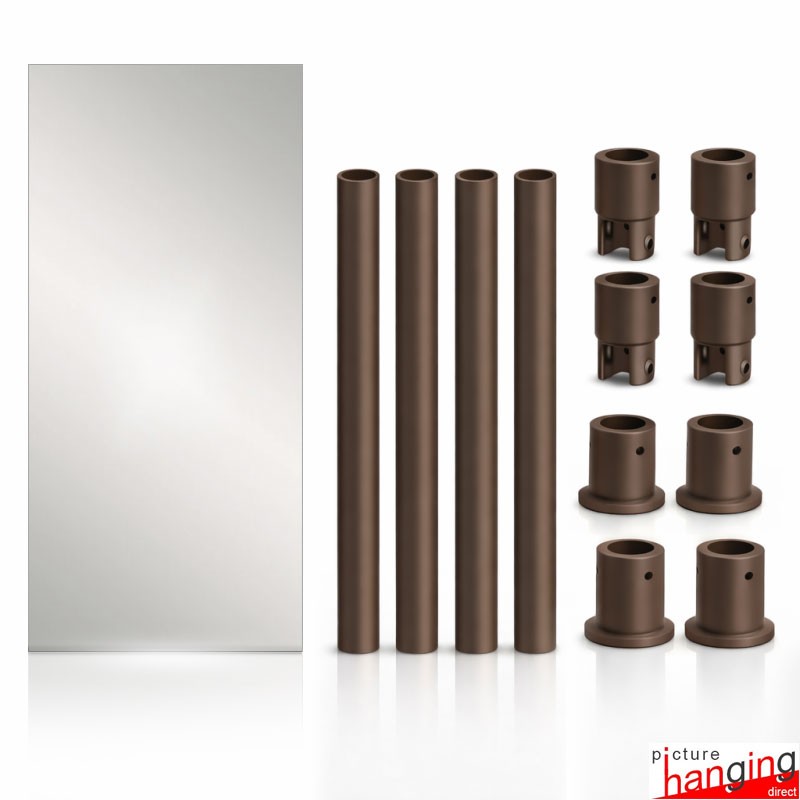

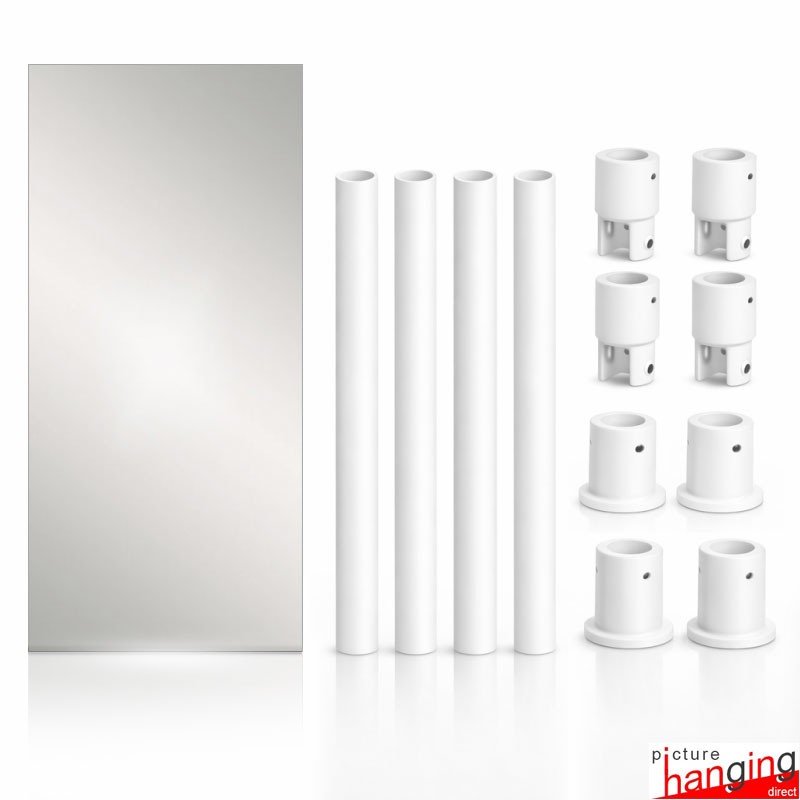

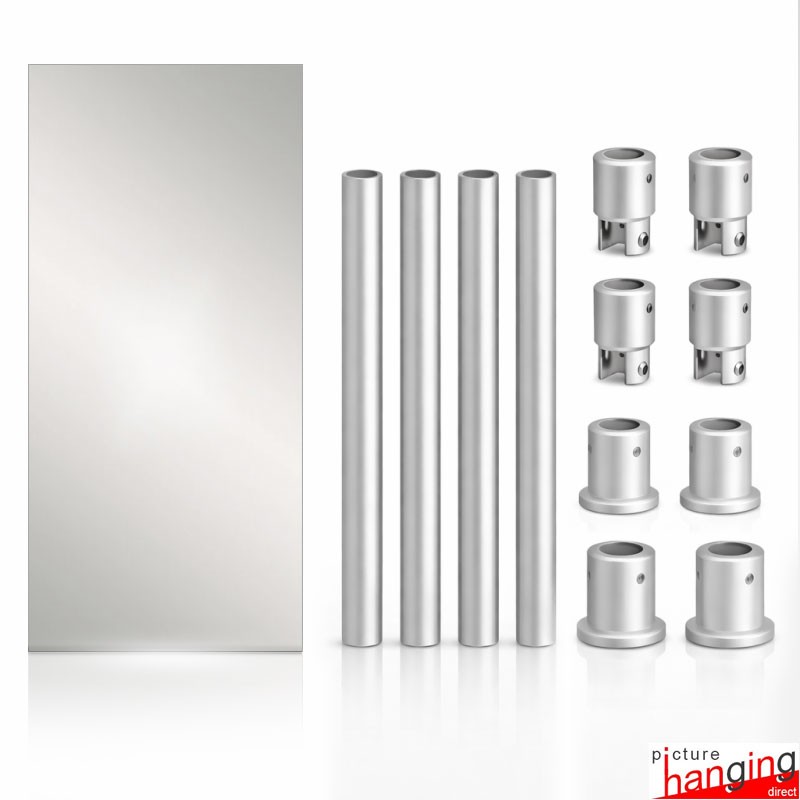

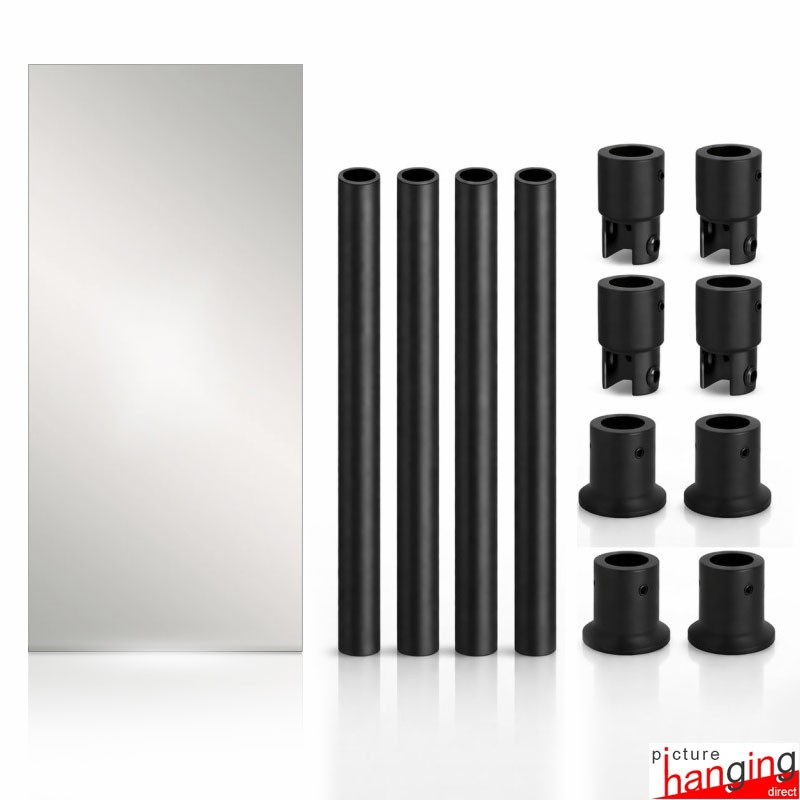

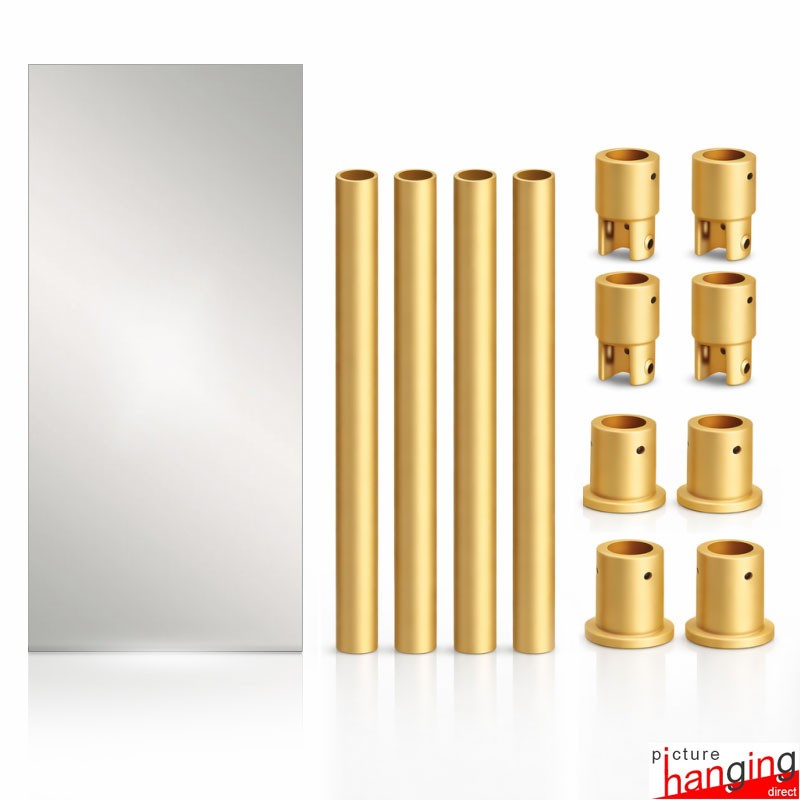

Salon mirror system - includes:

• (1) Double-sided mirror panel (90 x 60cm)
• (4) 1.2m round rods
• (2) Ceiling rod mounts
• (2) Floor/countertop rod mounts
• (4) Mirror clamps, 8mm

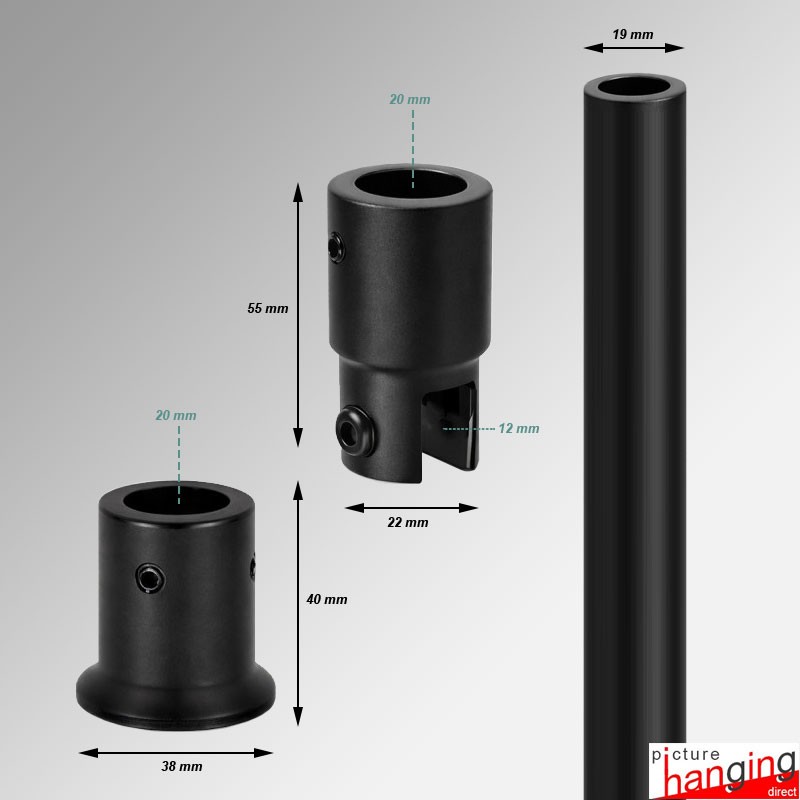

Rod & fittings - dimensions:

• Rod mount: 38mm x 40mm (hole for rod: 20mm)
• Mirror clamp: 22mm x 55mm (slot size: 12mm)
• Rod: 1200mm (1.2m) (diameter: 19mm)

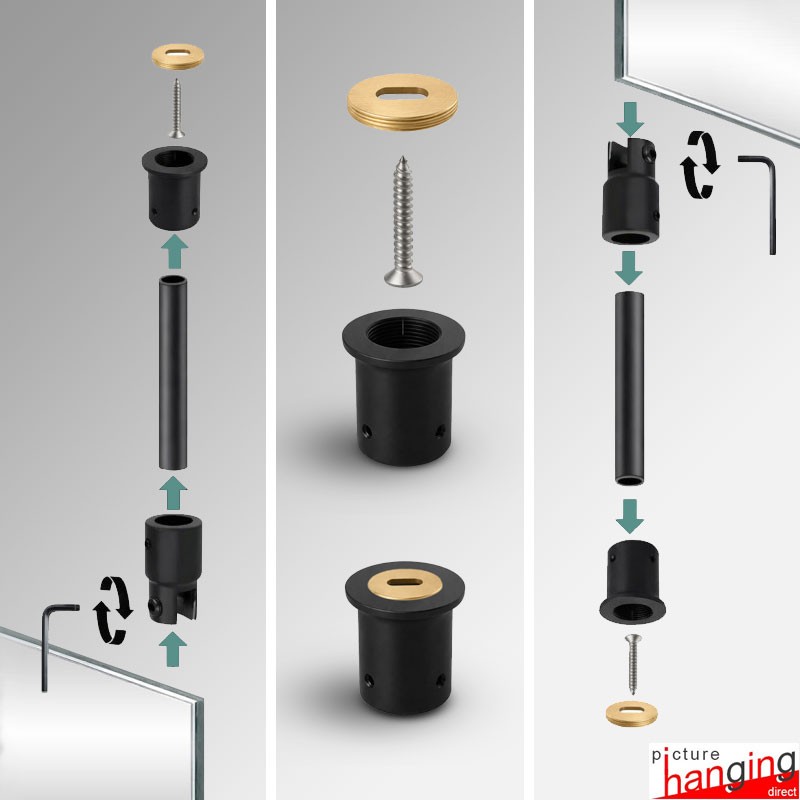

Fittings installation - guide:

1. Mark & Prepare Ceiling Rod Mounts: Mark the fixing point on the ceiling for the first rod. Drill a hole suitable for the screw provided (insert wall plugs if needed for plaster or brick ceilings).
2. Fix the Ceiling Rod Mount: Insert the screw through the gold cover cap. Tighten it into the ceiling securely. Once fixed, slide or place the ceiling holder over it for a clean finish.
3. Insert the Rod: Take the metal tube/rod and insert it into the top ceiling holder. Ensure it sits properly and straight. Tighten the small side grub screws (if present) to lock the rod in place.
4. Attach the Mirror Clamp: Slide a Mirror clamp onto the lower end of the rod. Do not fully tighten yet - leave it slightly loose for adjustment.
5. Position Mirror Glass Panel: Place the top edge of the glass panel into the clamp. Adjust the glass panel until it's aligned correctly.
6. Secure the Mirror Glass Panel: Use the Allen key (included) to tighten the clamp screws. Make sure the clamp grips the glass firmly.
7. Final Adjustment: Check alignment (vertical straightness). Adjust rotation if needed (as shown by the rotation icon).
